| How to cut the seat foam and add extra padding to the stock ZRX seat. This mod removes the forward slant. | |
![]() |

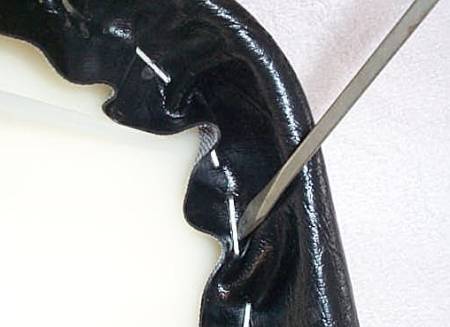

----- Remove the seat, turn it over, and remove the cover. Give the staples a little lift with a screwdriver. This makes it easier to grab them with some pliers. Grip the staples tightly and yank 'em out. It's best to leave a few staples in at the back edge of the seat, and the cover attached, so alignment is not a problem after you are finished cutting the foam. |
![]() |

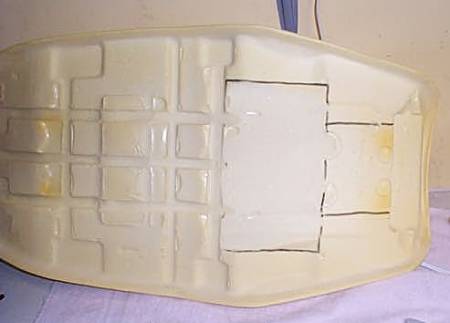

----- Mark an area with guide lines. Removing foam from this area on the bottom of the seat makes the seat more level on top. |
![]() |
----- It's as simple as slicing a turkey... Don't take too much on the first cut - never more than 1/4" at a time. Take a little off, put the seat base and foam on the ZRX, and try it out. Make a few thin cuts, and test it each time. Cutting more off is much easier than putting it back on. |
![]() |
----- After 2 or 3 thin cuts toward the back of the rider's seating area, remove a little from the front of the seat. These cuts help level the seat from left-to-right. |
![]() |
----- Mark an area under the passenger seat and trim the foam to make the seat more level. |
![]() |

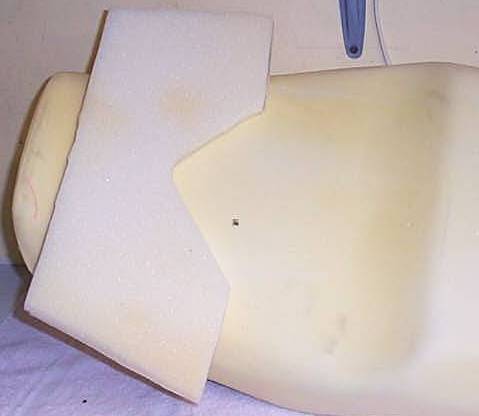

----- Add a piece of foam to the top-front of the seat. This helps make the seat top level. |
![]() |
----- Put the foam in this area before re-installing the seat cover and seat base. |
